We Built This Large Scale Chin Chin Processing Line In Nigeria
Heshan Machinery Co. Ltd. provides the Chin Chin Production Line, the turnkey plant that consists of highly reliable and fully automatic Chin Chin making machines. Our Chin Chin Production Lines are compatible to machines that make Nigerian Chin Chin, Go-Fresh Chin Chin Mix, Cofresh Chin Chin Mix and East End Punjabi Chin Chin Mix. They can also be used to make Scandinavian snack klenat or other fried chunky snack including fried biscuit, and fried dough. Please feel free to contact us for further details of our Chin Chin machines.

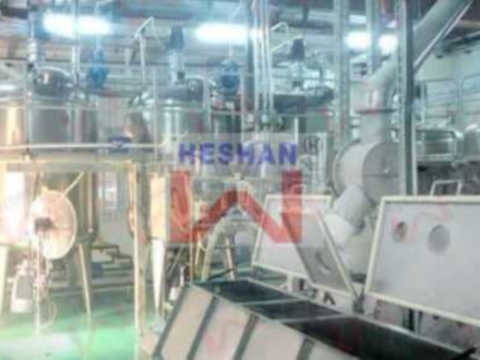

One of the Material Handling Units of Processing Line of the Chin Chin Dough Mixing Machine: This is a double shafts, rotating blade mixing machine, with Siemens motor, inverter speed control, PLC programming and HMI interface. The inspection window is designed for sequential mixing monitoring and the mixing gate has a safety lock which will stop mixing when the lid is opened. Alkaline Water Tank
One of the Material Handling Units of Processing Line of the Chin Chin Dough Mixing Machine on the automatic chin chin production lin. -Overhead motor -Straight mixing blade design -Applicable for normal Chin Chin additive, eggs, water, salt, and alkaline water, etc -Sequential mixing -HMI interface and PLC control mixing timing

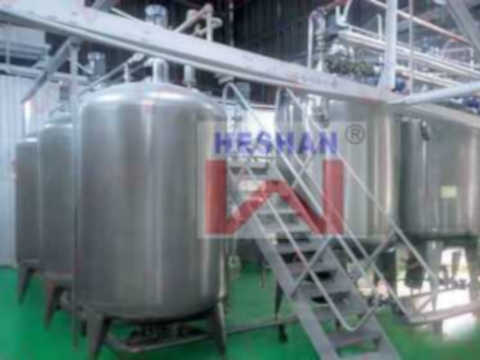

One of the Material Handling Units of Processing Line: - Jacket tank design applicable for steam heating - Used for sticky Chin Chin additives dissolving and mixing, eg. margarine and sugar
Click to view:
Below are brief introductions on each machine unit for our chin chin production line.
Chin chin mixer is in fact a double-arm mixer, which consists of equipment body, frame, mixing shaft, cylindrical or leaf-shape agitator, discharging door, water adding device, transmission as well as controlling part. All food contact surfaces such as the equipment body, discharging door, cylindrical agitator, the two shafts and so on are made of stainless steel. If it is angled leaf-shape agitator, such agitator is normally made of aluminum alloy and coated with PTFE. There are teeth scrapes on the agitator which helps with mixing the dough as well as cleaning the four and dough that stick on the inside wall of the mixing chamber. The gap between the agitator and the chamber bottom is 5mm, while the agitator to the chamber sides is 10mm. The water adding device is installed at the back of the mixing chamber. Water pipe is sealed on both sides and connected from the middle with the quantitative tank. There are a row of equidistant holes at the pipe bottom with a defection of 45 degree. The total area of all the holes is smaller than the sectional area of the pipe, so as to make sure the water fows fast and is spayed evenly between the two shafts. There are two types of discharging device: manual discharging device and electric discharging device. Manual discharging device mainly adopts the principle of rack-and- gear linear movement changing into connecting-rod arc movement, so as to control the discharging door. By replacing the manual part with the electric part, then comes the electric discharging device.
Double arm chin chin mixer has helix racks on its two shafts which go alternatively and continuously from the two sides, then downwards, then to the middle and then upwards. The two pairs of helical vanes on the two ends of the shafts keep stirring the chin chin dough, and at the same time keep transferring it to the middle. This mixing process brings convection motion and difusion motion in between four and water. chin chin dough is tumbled back and forth inside the mixing chamber. As its temperature goes up gradually, the chin chin dough turns from white four into light- yellow bean dregs. After mixed for some time, the wheat four is fully mixed with water and additives, and forms into an elastic, resilient, extensible and plastic dough. Based on the position of agitator blades, chin chin mixer can be divided into tangent chin chin mixer and overlapping chin chin mixer.
Its two agitator blades are built apart on the common tangent. The two blades operate independently and without interfering with each other. The speeds of the two blades can be decided diferently. It is like two single- arm mixers operating inside one same chamber.
Its two agitator blades are built crosswise. As the blade moving trails are overlapping, their design, shape, motion path and moving speed must not interfere with the other. Normally, their moving speeds should be 1:2 or 1:1. If it is 1:2, the blade with faster speed will chase the blade with lower speed which will make the dough fully folded, stretched and kneaded. Main Parameters for Double-arm Chin Chin Mixer
Upright Aging Machine is also called Disk-type Aging Machine or Disk-type Feeder. Its transmission shaft is vertical with two mixing rods in diferent lengths. This design is characterized in that its rotating speed is slow and therefore good for the aging process. By comparison, Horizontal Feeder is more complex in design and causes many dough clumps during production which results in problems in feeding, while Upright Aging Machine is neat in design and requires small foor area. And it is also easier to clean.
It mainly contains equipment body, mixing rod, discharging device, and transmission device. Food contact surfaces are all made of stainless steel. Mixing rod is made of aluminum alloy or stainless steel (if it is made of aluminum alloy, it should be coated with PTFE). Mixing rod is arched in the middle. The feeder volume should not be too small and it should equal to one third of the chin chin line output. Feeder shape should be round and its height-to-diameter ratio (H/D) is 1/6. Rotating speed of the vane should be 2.5 to 5 r/min. chin chin dough should stay in the feeder long enough (preferably 30 minutes) so as to achieve aging efect.
The mixing rod rotates slowly and counterclockwise during operation. The disk is 250 to 300mm in height with diameter of 1000 to 1800 mm in diameter. The rotating speed of the main shaft is 5 to 8 r/min. This speed is reduced through primary gear transmission and then further reduced by the worm reduction box. The disk is without cover so that the heat is easily emitted. On the bottom of the disk while near the edge, there is a discharging hole which is adjusted by a fashboard. A safety head is installed above the discharging door. Underneath the safety head, there is a contact micro switch which is connected with the mixing motor. When the discharging door is obstructed and the block needs to be removed manually, workers have to open the safety head by hands. At this time, the micro switch will be disconnected and the mixing rod will stop working. This device can efectively avoid hands crushed by the mixing.
As the aging process requires a low-temperature and steady environment, the mixing rod retains at low rotary speed. And this not only ensures even feeding, but also helps to loosen the dough and keep it in an incompact state and in particles. The aging time is determined based on volume, the size of discharging door, the size of the fashboard and the rotary speed of the mixing rod. The dough from feeder will go into Compound Rolling Machine and this is the complete process of feeding. The dough from feeder is loosened and soft. Its staying time in the aging machine should be between 15 to 45 mins.

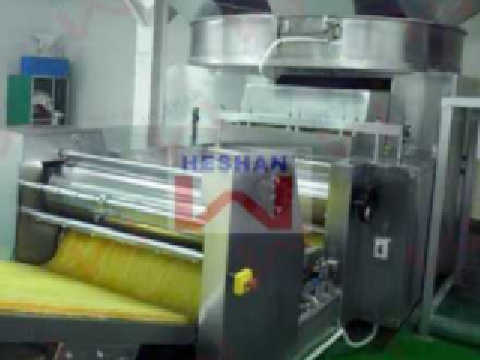

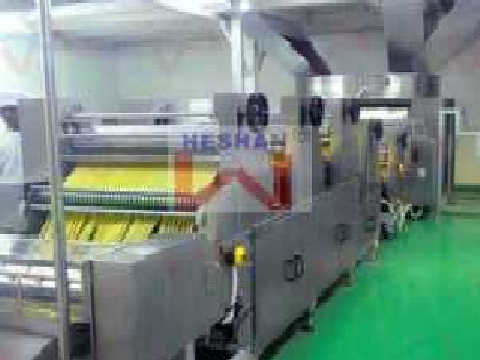

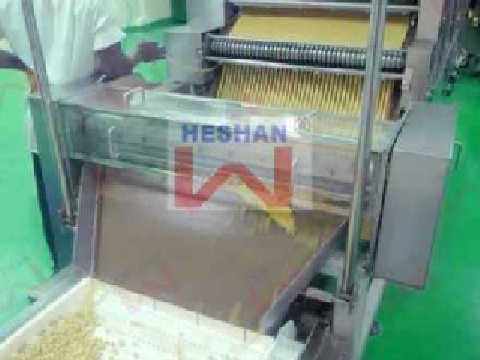

Compound rolling is a process that rolls the aged dough through multiple rollers and make it into the required dough sheet. Compound rolling is also called pressing. The traditional way of chin chin making is by hand. The dough is kneaded by hand and rolled over and over again by a rolling pin. Gradually, the dough is pressed into a dough sheet with certain thickness. Machine rolling is developed based on this traditional way. The dough goes through multiple sets of counter-rotating rollers and forms into a dough sheet. By putting pressure on the dough, scattered wet gluten in the dough will be connected together. The wet gluten network surrounds starch particles and spreads evenly on the dough. This improves the processability and the cooking properties of the dough. Compound rolling is the central processing link in the whole chin chin line and greatly afects the quality of fnal chin chin products.

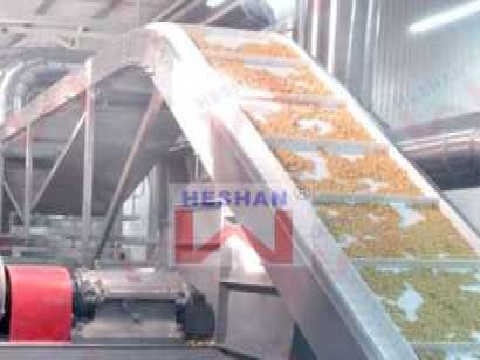

Dehydrating and frying is a process that fries the chin chin squares in an automatic fryer. In the fryer pan with high-temperature oil, chin chin temperature goes up quickly and water contained in chin chin evaporates fast. That makes the chin chin squares a porous structure and increases its texture. Dehydration helps to reduce the water content in chin chin and hence it is better for storage. Requirements of Frying: even frying, unanimous color, no over- frying, less oil content and other quality requirements.

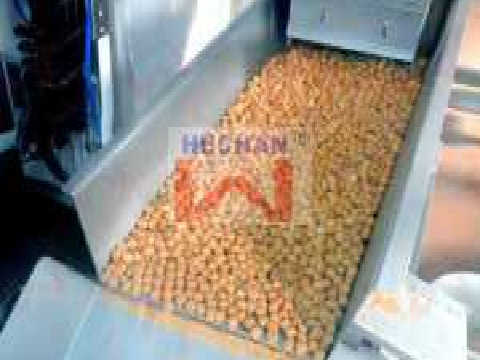

After frying, chin chin has a comparatively high temperature. Its temperature still remains from 80 to 100 °C. When chin chin comes out from the hot-air dryer, its temperature is around 50 to 60 °C. If chin chin is packed in bags in such temperature without cooling down, its shelf life would be very short. What is more, if cooling is not conducted the right way according to requirements, the steam will be generated inside the bag and chin chin will get mildewed. So it is necessary to let chin chin go through the cooling process. There are two ways of cooling: natural cooling and forced cooling.
