Dried Cooking Noodle Plant

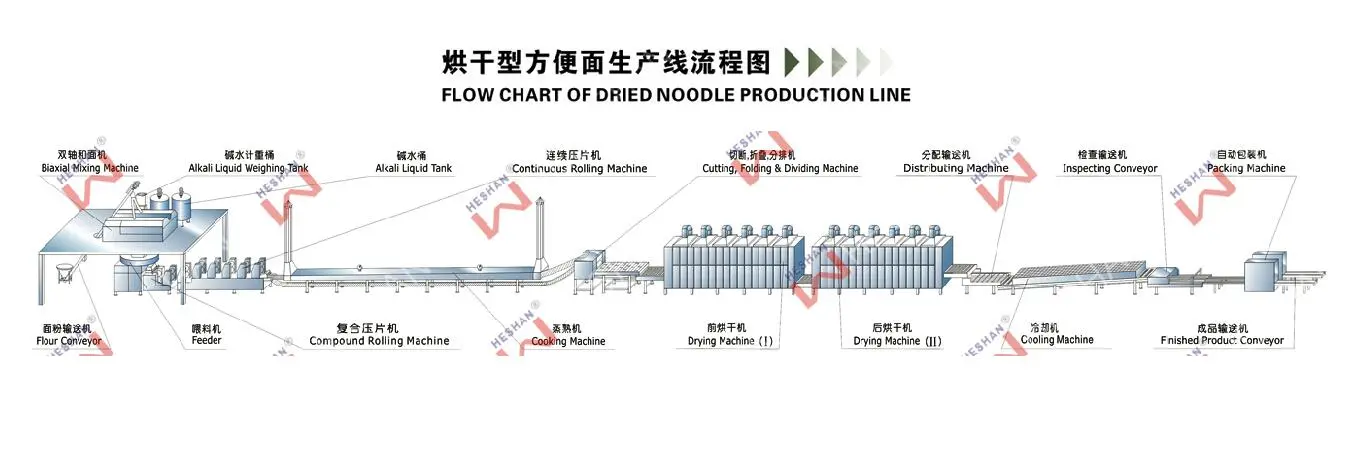

Note: This is a standard flow chart which can be partially altered according to specific requirement .

SPECIFICATION

Type	Dried Cooking Instant Noodle Production Line
Model	DN-200A	DN-200B	DN-300A	DN-300B	DN-400A	DN-400B	DN-500A	DN-500B	DN-600A	DN-600B	DN-700	DN-800
Output (bags/8h)	40,000	60,000	70,000	90,000	100,000	120,000	130,000	150,000	160,000	180,000	200,000	220,000
Rated power (kW)	40	45	50	55	60	65	70	75	80	85	90	95
Steam consumption (kg/h)	900	1100	1200	1400	1500	1700	1800	2000	2100	2300	2500	2700
Operator/shift	8	8	8	8	10	10	10	10	12	12	12	12
Overall dimensions(m³)	70x3x4	80x3x4	70x3.2x4	80x3.2x4	70x3.4x4	80x3.4x4	80x3.4x4	80x3.4x4	70x3.8x4	80x3.8x4	80x4.0x4	80x4.0x4
Noodle weight	40-80 grams/piece
