Fried Bag Instant Noodle Plant

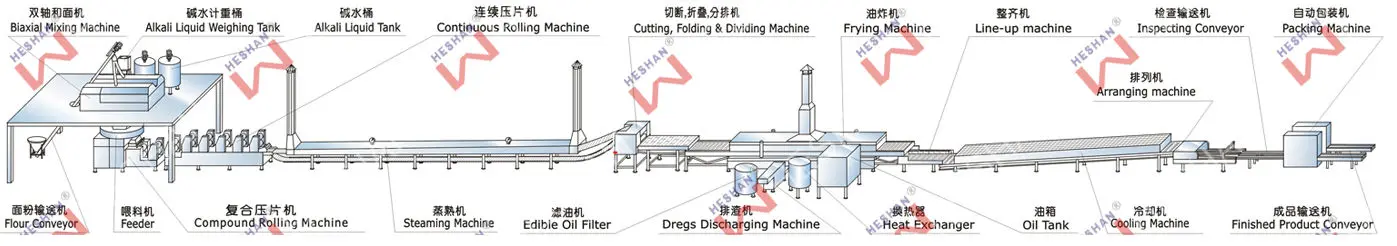

Flowchart of the production line for bagged instant noodles

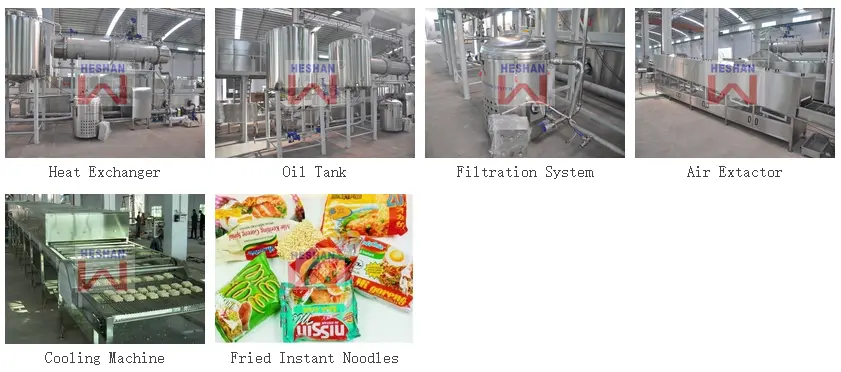

Click on a thumbnail to view the photo full size:

Type	Fried Bag Instant Noodle Production Line
Model	FBN-200A	FBN-200B	FBN-300A	FBN-300B	FBN-400A	FBN-400B	FBN-500A	FBN-500B	FBN-600A	FBN-600B	FBN-700	FBN-800
Output (bags/8h)	40,000	60,000	70,000	90,000	100,000	120,000	130,000	150,000	160,000	180,000	200,000	220,000
Rated power (kW)	40	45	50	55	60	65	70	75	80	85	90	95
Steam consumption (kg/h)	900	1100	1200	1400	1500	1700	1800	2000	2100	2300	2500	2700
Operator/shift	8	8	9	9	10	10	11	11	11	11	12	12
Overall dimensions(m³)	70x3x4	80x3x4	70x3.2x4	80x3.2x4	70x3.4x4	80x3.4x4	80x3.4x4	80x3.4x4	70x3.8x4	80x3.8x4	80x4.0x4	80x4.0x4
Noodle weight	60-90 grams/bag
