Fried Cup Instant Noodle Plant

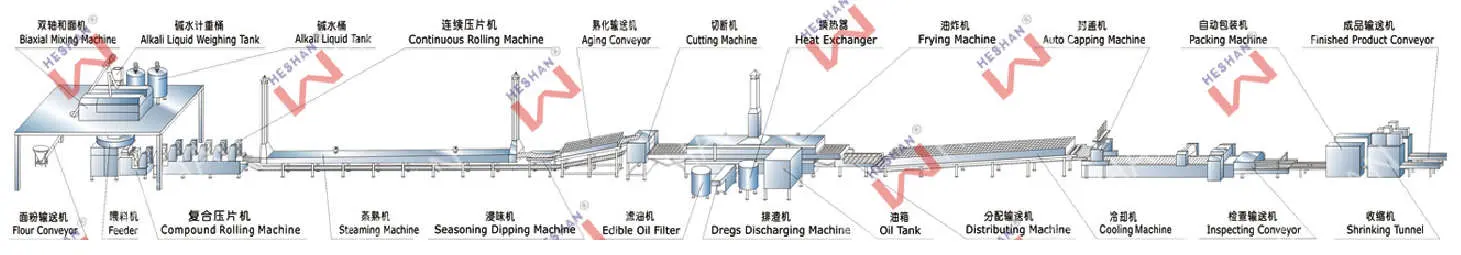

Flowchart of the production line for cup/bowl instant noodles

Note: This is a standard flow chart which can be partially altered according to specific requirement. Click on the photo to view in full size.

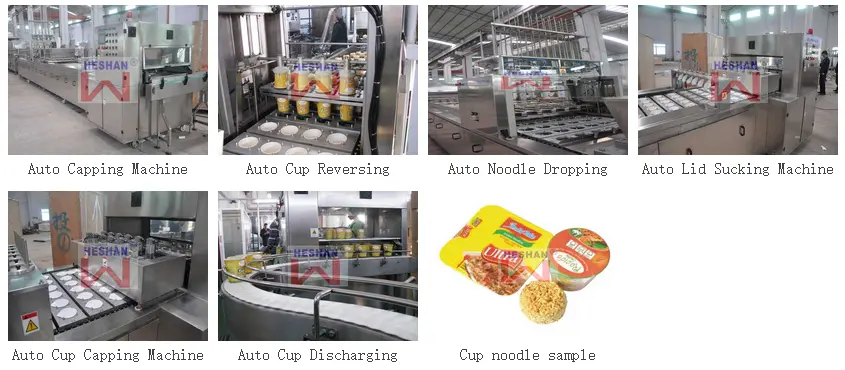

Click on a thumbnail to view the photo full size:

Type	Fried Cup/Bowl Instant Noodle Production Line
Model	FCN-200A	FCN-200B	FCN-300A	FCN-300B	FCN-400A	FCN-400B	FCN-500A	FCN-500B	FCN-600A	FCN-600B	FCN-700	FCN-800
Output (bags/8h)	40,000	60,000	70,000	90,000	100,000	120,000	130,000	150,000	160,000	180,000	200,000	220,000
Rated power (kW)	42	47	52	57	62	67	72	77	82	87	92	97
Steam consumption (kg/h)	900	1100	1200	1400	1500	1700	1800	2000	2100	2300	2500	2700
Operator/shift	10	10	10	10	12	12	12	12	14	14	14	14
Overall dimensions(m³)	70x3x4	80x3x4	70x3.2x4	80x3.2x4	70x3.4x4	80x3.4x4	80x3.4x4	80x3.4x4	70x3.8x4	80x3.8x4	80x4.0x4	80x4.0x4
Noodle weight	60-90 grams/cup
