Fresh Rice Noodle Machine

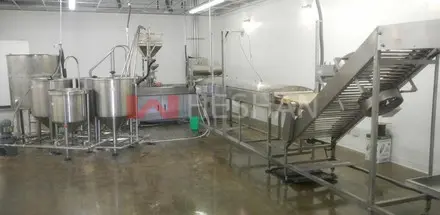

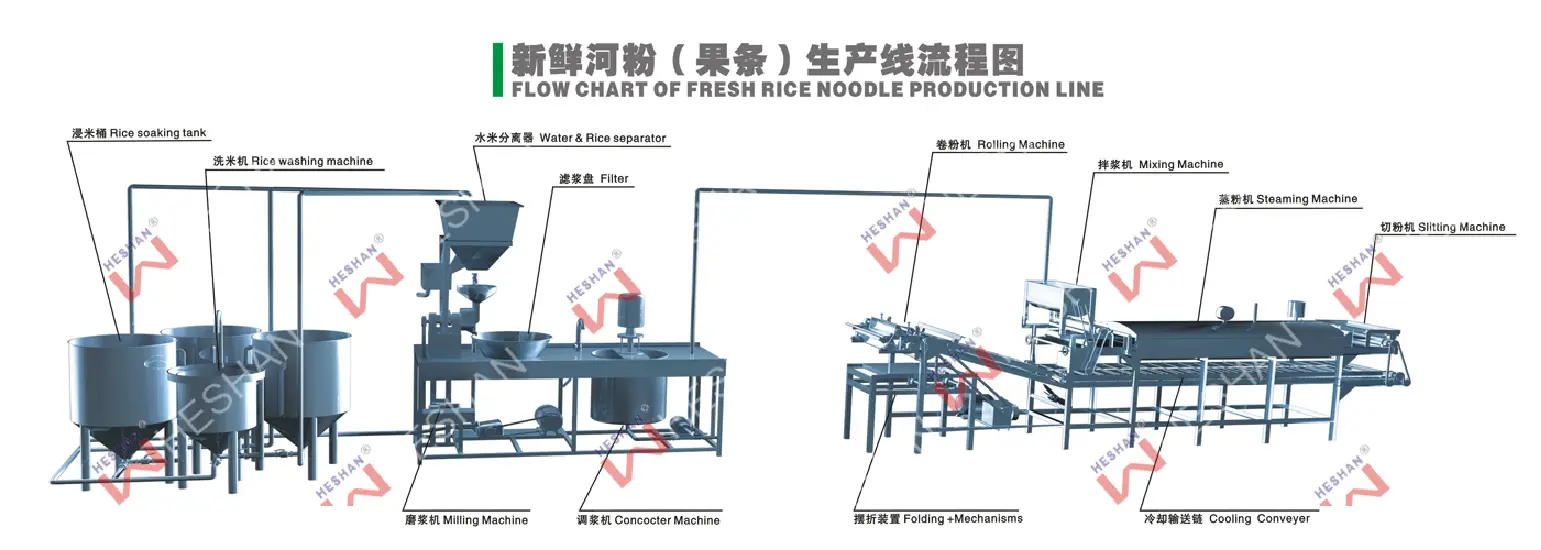

HESHAN FRESH RICE NOODLE MACHINES automatically produce fresh rice noodle strips or rolls through a series of process shown in the above draft (click the links to view photos of the equipment).

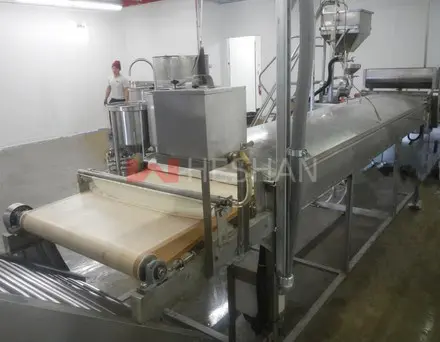

The steaming machine is the central part the the assembly of the fresh rice noodle machines, which consists of the frame, steaming pot, starch distributing pan, pulp distributing mechanism, gear box, starch pump, steam piping and diesel burner. Its features are: short operation time for well cooked rice noodle and adjustable noodle trip thickness.

Type	Eletric Heating Type				Steam & Fuel-oil Heating Type
Model	ERN50	ERN100	ERN150	ERN200	ERN250	ERN350	ERN450	ERN550
Capacity (kg/h)	50	100	150	200	250	350	450	550
Steam Consumption(kg/h)					40-80
Steam Pressure(Mpa)					0.03-0.06
Operators/shift	2-4
Overal Dimenssion(m³)	(5-8)x(0.6-1.2)x(1.2-1.6)
Rice Noodle Thickness(mm)	0.6-1.2
