Fried Crunchy Noodle Snack Plant

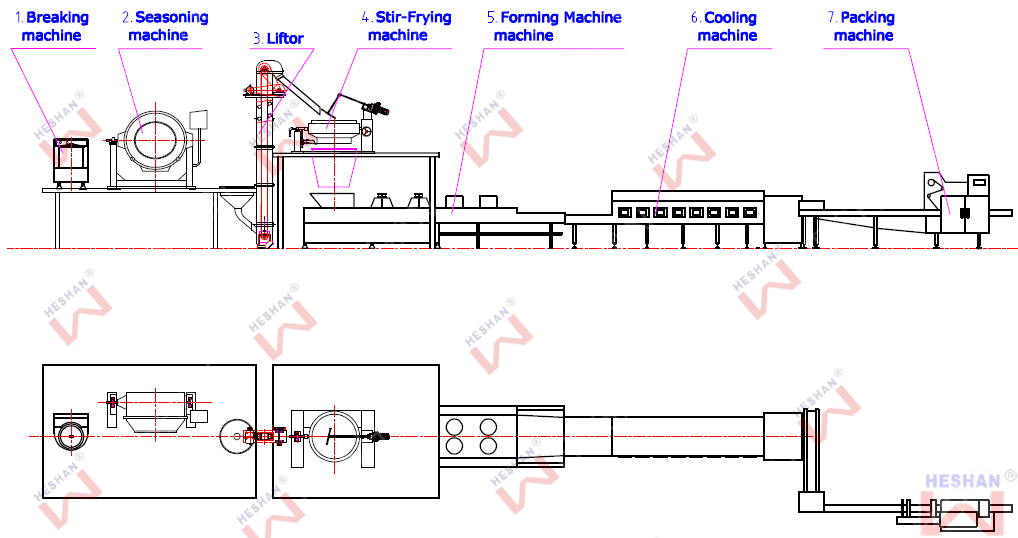

I. FLOW CHART

Breaking → Noodle-crumb → seasoning → Stir-frying(with sugar+season) → Forming → Cooling → Packing

II. SPECIFICATION

Model	Capacity	Power Consumption	Fuel (Gas/Oil)	Operator	Dimension
SNH-150F	150Kg/H	415V/50HZ/25KW	4,5000～ 600,000 Kcal/H	4～5	L: 27～30m W: 3～4m H: 3.8m
SNH-250F	250Kg/H	415V/50HZ/30KW
SNH-350F	350Kg/H	415V/50HZ/35KW
SNH-500F	500Kg/H	415V/50HZ/40KW
SNH-650F	650Kg/H	415V/50HZ/45KW
Noodle Snack 4～8g/Piece (L50 mm×W35mm X 14～18mm height.)

III.Equipment Description

> 1) Noodle Breaking Machine:Breaking the noodle or noodle crumbs into granule automatic for easier forming.
2) SEASONING MACHINE
3) STIR-FRYING MACHINE
4) Forming Machine FH-500
5) Cooling Machine
6) Packing MACHINE

> Break the noodle shape into noodle chips through adhesive. After Forming, drying, cooling process finally, it produces noodle snack. The Snack Noodle Production Line is also known as Crunchy Noodle Snack Machine, and Noodle Chips Production Line.
